Nut Former - Nut Header Machine - Nut Making Machine

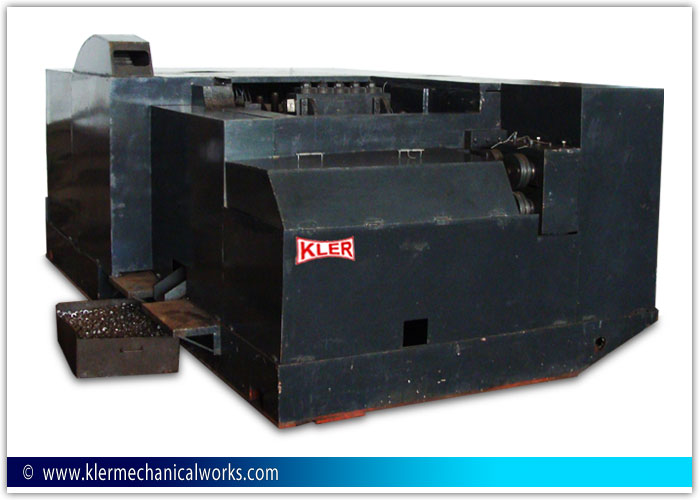

NUT FORMER / NUT HEADER MACHINE

Our Nut Former machine can manufacture:
Hex Flange Nuts, Square Nuts, Hex Nuts, Collar Nuts, Lock Nuts, Heavy Hex Nuts, Square Weld Nuts, hex Weld Nuts, Special Nut Bolts

TECHNICAL SPECIFICATIONS - Nut Header / Nut Former Machine
Capacity In mm	Capacity In Inches	Stations	Stock Per Mints	HP RPM	Cooling Pump	Compressor	All Over Dim Height Length Width	Weight Apro.
5 mm	3/16	Five	165	3 H.P. 960 RPM	1/2"	80 to 100Pond	3 ^{1/4 '}5' x 5'	3 1/2 Ton
6mm	1/4	Five	150	5 H.P. 960 RPM	1/2"	80 to 100	3 ^{1/2 '}6' x 5'	4 Ton
8 mm	5/16	Five	140	10 H.P. 960 RPM	3/4"	100 to 120	3' x 8"6' x 5'x 7"	4 1/2 Ton
9 mm	3/8	Five	110	15 H.P. 960 RPM	3/4"	100 to 120	4 ^{1/4 '}7^1/4'x6'x9'	8 Ton
10 mm	10 mm	Five	100	15 H.P. 960 RPM	3/4"	100 to 120	3' x 3' 8'x3'x7'x4"	10 Ton
12 mm	1/2	Five	70	20 H.P. 960 RPM	1"	100 to 120	4' 11'x6'x8"	16 Ton
16 mm	5/8	Five	65	25 H.P. 960 RPM	1"	100 to 130	4' x 10"12^1/2'x7x10"	22 1/2 Ton
20 mm	20 mm	Five	50	40 H.P. 960 RPM	1"	100 to 140	5'14^1/2'x8^1/4'	26 Ton
24 mm	24 mm	Five	40	50 H.P. 960 RPM	1-1/4"	100 to 145	5 ^1/4' 17'x10^1/4'	32 Ton
